Cutler Hammer 10250T5J63-1X

Cutler Hammer 10250T5J63-1X

motor control

  • Catalog Number: 10250T5J63-1X
  • Manufacturer: Cutler Hammer

Cutler Hammer 10250T5J63-1X Specifications:

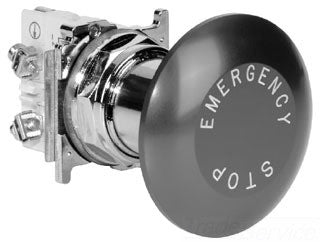

  • PUSH PULL SWITCH, EMERGENCY STOP BUTTON 65 MM DIA
  • SIZE 30.5...
More Info
$177.60
$177.60
  • Category: Cutler Hammer Motor Control, Motor Controls, New Motor Controls, Used Motor Controls
  • Catalog Number: 10250T5J63-1X
  • Manufacturer: Cutler Hammer

Cutler Hammer 10250T5J63-1X Specifications:


  • PUSH PULL SWITCH, EMERGENCY STOP BUTTON 65 MM DIA
  • SIZE 30.5 MM
  • OPERATION TYPE MAINTAINED PUSH/MAINTAINED PULL
  • CONTACT RATING 600 VAC AT 50/60 HZ 10 AMPERE, 250 VDC 5 AMPERE
  • CONTACT CONFIGURATION 1NO-1NC
  • 2 POSITION
  • CAP/LENS COLOR RED



Cutler Hammer 10250T5J63-1X Details:


  • Directory:: CIS
  • Commerce Sector:: Construction Materials
  • Industry:: Electrical
  • Commodity Code:: 4220
  • Commodity Description:: Relays, etc. - Push Btns, Pilot Lts, etc.
  • Noun:: Push Button
  • UPC:: 78211394897
  • Item Number:: 94897
  • Catalog Number:: 10250T5J63-1X
  • :
  • UNSPSC:: 39121512
  • Image Location:: Push Button Image
  • Model:: 10250T
  • Type:: EMERGENCY STOP BUTTON 65 MM DIA
  • Size:: 30.5 MM
  • Operation Type:: MAINTAINED PUSH/MAINTAINED PULL
  • Contact Rating:: 600 VAC AT 50/60 HZ 10 AMPERE, 250 VDC 5 AMPERE
  • Contact Configuration:: 1NO-1NC
  • Number of Positions:: 2
  • Cap/Lens Color:: RED
  • Body Material:: CHROME PLATED DIE CAST ZINC
  • Enclosure:: NEMA 1/2/3/3R/4/4X/12/13, IP65
  • Approval:: UL 508, CSA 22.2, CE EN 60947-5-1
  • Additional Information:: APPLICABLE STANDARD IEC
