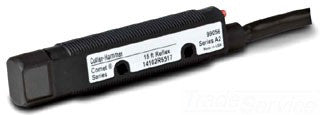

Cutler Hammer 14101R6513

Cutler Hammer 14101R6513

motor control

  • Catalog Number: 14101R6513
  • Manufacturer: Cutler Hammer

Cutler Hammer 14101R6513 Specifications:


  • PHOTOELECTRIC SENSOR, POLARIZED REFLEX
  • 20 TO 264 VAC AT 50/60 HZ,...
More Info
$188.00
$188.00
  • Category: Cutler Hammer Motor Control, Motor Controls, New Motor Controls, Used Motor Controls
  • Catalog Number: 14101R6513
  • Manufacturer: Cutler Hammer

Cutler Hammer 14101R6513 Specifications:


  • PHOTOELECTRIC SENSOR, POLARIZED REFLEX
  • 20 TO 264 VAC AT 50/60 HZ, 15 TO 30 VDC OPERATING VOLTAGE
  • 300 MILLIAMPERE LOAD CURRENT
  • RIGHT ANGLE SENSING POSITION
  • 10 FT SENSING DISTANCE
  • RESPONSE TIME 10 MILLISECOND



Cutler Hammer 14101R6513 Details:


  • Directory:: CIS
  • Commerce Sector:: Construction Materials
  • Industry:: Electrical
  • Commodity Code:: 4800
  • Commodity Description:: Controls - Photo Cells
  • Noun:: Proximity Sensor
  • UPC:: 78211384665
  • Item Number:: 84665
  • Catalog Number:: 14101R6513
  • :
  • UNSPSC:: 39121528
  • Image Location:: Proximity Sensor Image
  • Type:: POLARIZED REFLEX
  • Operating Voltage:: 20 TO 264 VAC AT 50/60 HZ, 15 TO 30 VDC
  • Load Current:: 300 MILLIAMPERE
  • Sensing Position:: RIGHT ANGLE
  • Sensing Distance:: 10 FT
  • Response Time:: 10 MILLISECOND
  • Output Configuration:: NPN/VMOS 3 WIRE/4 WIRE
  • Operating Mode:: LIGHT/DARK
  • Field of View:: 1 INCH DIA AT 50 INCH
  • Connection Type:: 6 FT CABLE
  • Construction:: RECTANGULAR THREADED NOSE 18 MM
  • Body Material:: POLYURETHANE
  • Operating Temperature:: -40 TO 158 DEG F
  • Enclosure:: NEMA 1
  • Approval:: UL, CUL, CE
  • Additional Information:: SIZE 3.32 INCH WIDTH X 0.47 INCH DEPTH
  • ::
