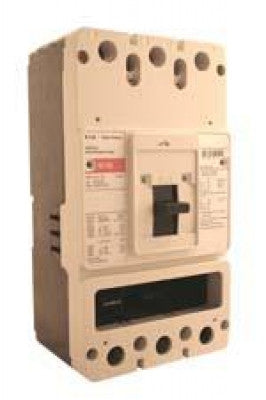

Cutler Hammer DK2300

Cutler Hammer DK2300

circuit breakers

  • Catalog Number: DK2300
  • Manufacturer: Cutler Hammer
  • Connection: Bolt-on
  • Frame Type: DK
  • Amperage: 300
  • Poles: 2
  • Voltage: 120/240

Cutler...

More Info
$548.00
$729.95
$548.00
  • Category: Buy Wholesale Circuit Breakers | Top Brands & Manufacturers, Eaton Cutler Hammer Circuit Breakers, New Circuit Breakers, Used Circuit Breakers
  • Catalog Number: DK2300
  • Manufacturer: Cutler Hammer
  • Connection: Bolt-on
  • Frame Type: DK
  • Amperage: 300
  • Poles: 2
  • Voltage: 120/240

Cutler Hammer DK2300 Specifications:


  • MOLDED CASE, THERMAL MAGNETIC
  • DK FRAME
  • 240 VAC AT 50/60 HZ, 250 VDC
  • 300 AMPERE AT 40 DEG C
  • 2 POLE
  • INTERRUPTING RATING 65 KILOAMPERE AT 240 VAC, 10 KILOAMPERE AT 250 VDC (UL)
  • 65 KILOAMPERE AT 240 VAC, 10 KILOAMPERE AT 250 VDC (IEC)



Cutler Hammer DK2300 Details:


  • Commodity Description: Circuit Breakers - Commercial Circuit Breakers
  • Type: MOLDED CASE, THERMAL MAGNETIC
  • Current Rating: 300 AMPERE AT 40 DEG C
  • Interrupting Rating: 65 KILOAMPERE AT 240 VAC, 10 KILOAMPERE AT 250 VDC (UL)
  • Terminal Type: ALUMINUM/COPPER STANDARD PRESSURE LINE TERMINAL, STANDARD PRESSURE LOAD TERMINAL
  • Lugkit: Alum. (100-225 amp) 1 barrel 3/0 Alum. (250-300 amp) 1 barrel 250 MCM Alum. (400 amp) 2 barrel 3/0
  • Mounting Hardware: PRL4a panel = KPRL4KDT (twin mount) KPRL4KDS (single mount)
