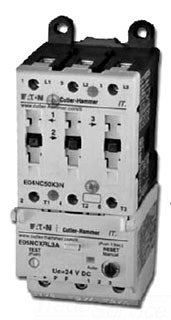

Cutler Hammer E101B18C3A

Cutler Hammer E101B18C3A

motor control

  • Catalog Number: E101B18C3A
  • Manufacturer: Cutler Hammer
  • Amperage: 18

Cutler Hammer E101B18C3A Specifications:


  • NON REVERSING STARTER, FULL VOLTAGE, NON REVERSING
  • ...
More Info
$355.33
$355.33
  • Category: Cutler Hammer Motor Control, Motor Controls, New Motor Controls, Used Motor Controls
  • Catalog Number: E101B18C3A
  • Manufacturer: Cutler Hammer
  • Amperage: 18

Cutler Hammer E101B18C3A Specifications:


  • NON REVERSING STARTER, FULL VOLTAGE, NON REVERSING
  • 4 KW AT 220/240 V 50/60 HZ 3 PHASE, 7.5 KW AT 380 V 50/60 HZ 3 PHASE, 9 KW AT 400/415/460/500/550/575 V 50/60 HZ 3 PHASE



Cutler Hammer E101B18C3A Details:


  • Directory:: CIS
  • Commerce Sector:: Construction Materials
  • Industry:: Electrical
  • Commodity Code:: 4130
  • Commodity Description:: Motor Cntrl Starters, etc. - Motor Cntrl Starters & Cntctrs
  • :
  • UPC:: 78211389072
  • Item Number:: 89072
  • Catalog Number:: E101B18C3A
  • :
  • UNSPSC:: 39121521
  • :
  • Model:: E101
  • Type:: FULL VOLTAGE, NON REVERSING
  • Power Rating/Voltage:: 4 KW AT 220/240 V 50/60 HZ 3 PHASE, 7.5 KW AT 380 V 50/60 HZ 3 PHASE, 9 KW AT 400/415/460/500/550/575 V 50/60 HZ 3 PHASE
  • Current Rating:: 18 AMPERE AT 480 VAC (AC-3)
  • Phase:: 1/3
  • Coil Voltage:: 24 VDC
  • Size:: IEC B, FRAME 45 MM
  • Enclosure Type:: OPEN
  • Overloads:: SOLID STATE 3 POLE AMBIENT TEMPERATURE COMPENSATED AUTOMATIC/MANUAL/REMOTE RESET CLASS 10/20/30 OVERLOAD CURRENT RANGE 1.4 TO 4.4 AMPERE
  • Construction Standard:: IEC
  • Additional Information:: APPLICABLE STANDARD, EN 60947-4-1 IEC 60947-4-1
  • ::
