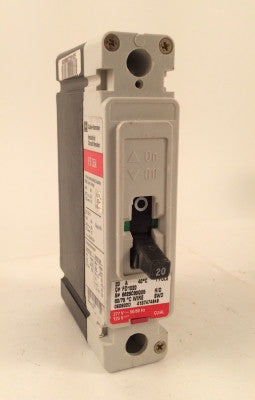

Cutler Hammer FD1020

Cutler Hammer FD1020

circuit breakers

  • Catalog Number: FD1020
  • Manufacturer: Cutler Hammer
  • Connection: Bolt-on
  • Frame Type: FD
  • Amperage: 20
  • Poles: 1
  • Voltage: 277

Cutler...

More Info
$74.95
$119.20
$74.95
  • Category: Buy Wholesale Circuit Breakers | Top Brands & Manufacturers, Eaton Cutler Hammer Circuit Breakers, New Circuit Breakers, Used Circuit Breakers
  • Catalog Number: FD1020
  • Manufacturer: Cutler Hammer
  • Connection: Bolt-on
  • Frame Type: FD
  • Amperage: 20
  • Poles: 1
  • Voltage: 277

Cutler Hammer FD1020 Specifications:


  • MOLDED CASE, THERMAL MAGNETIC
  • F FRAME
  • 277 VAC AT 50/60 HZ, 125 VDC
  • 20 AMPERE AT 40 DEG C
  • 1 POLE
  • INTERRUPTING RATING 25 KILOAMPERE AT 277 VAC, 10 KILOAMPERE AT 125 VDC (UL)
  • 25 KILOAMPERE AT 220/240 VAC, 10 KILOAMPERE AT 125 VDC (IEC)



Cutler Hammer FD1020 Details:


  • Commodity Description: Circuit Breakers - Residential Circuit Breakers
  • Type: MOLDED CASE, THERMAL MAGNETIC
  • Current Rating: 20 AMPERE AT 40 DEG C
  • Interrupting Rating: 25 KILOAMPERE AT 277 VAC, 10 KILOAMPERE AT 125 VDC (UL)
  • Terminal Type: STANDARD PRESSURE LOAD TERMINAL
  • Lugkit: Alum. (15-225 amp) 1 barrel #14 AWG Alum. (15-150 amp) 1 barrel #14 AWG
  • Mounting Hardware: PRL3a panel = KPRL3AFD3 (twin mount)PRL4a panel = KPRL4FD (twin mount)MP40 & MP50 panel = MP40KF100-9
