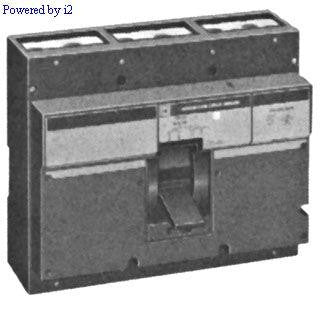

Federal Pacific NEF361200LSG

Federal Pacific NEF361200LSG

circuit breakers

  • Catalog Number: NEF361200LSG
  • Manufacturer: Federal Pacific
  • Connection: Bolt-on
  • Frame Type: NEF
  • Amperage: 1200
  • Poles: 3
  • Voltage: 600

Federal...

More Info

Call Now

  • Category: Buy Wholesale Circuit Breakers | Top Brands & Manufacturers, Federal Pacific Circuit Breakers, New Circuit Breakers, Used Circuit Breakers
  • Catalog Number: NEF361200LSG
  • Manufacturer: Federal Pacific
  • Connection: Bolt-on
  • Frame Type: NEF
  • Amperage: 1200
  • Poles: 3
  • Voltage: 600

Federal Pacific NEF361200LSG Specifications:


  • ELECTRONIC, MOLDED CASE
  • N FRAME
  • 240 VAC AT 50/60 HZ, 480 VAC STAR/277 VAC AT 50/60 HZ, 480 VAC AT 50/60 HZ, 600 VAC STAR/347 VAC AT 50/60 HZ, 600 VAC AT 50/60 HZ (UL/CSA/NOM)
  • 240/415 VAC AT 50/60 HZ (IEC)
  • 1200 AMPERE
  • 3 POLE



Federal Pacific NEF361200LSG Details:


  • Commodity Description: Circuit Breakers - Industrial Circuit Breakers
  • Type: ELECTRONIC, MOLDED CASE
  • Current Rating: 1200 AMPERE
  • Interrupting Rating: 125 KILOAMPERE AT 240 VAC, 100 KILOAMPERE AT 480 VAC STAR/277 VAC OR 480 VAC, 65 KILOAMPERE AT 600 VAC STAR/347 VAC OR 600 VAC (UL/CSA/NOM)
  • Terminal Type: TERMINAL PAD
In addition to a detailed inspection, every Circuit Breaker Wholesale product comes with a comprehensive warranty covering defects for 1 year. Reconditioned products come with a comprehensive warranty covering defects for 3 years. Circuit Breaker Wholesale will repair, replace or service all covered components, that are found to be defective in factory-supplied products during the applicable warranty periods. All warranty items must be returned to Circuit Breaker Wholesale for a full inspection and must be returned within the warranty period. Contact us at support@circuitbreakerwholesale.com or call us at (800) 800-800 for help with your warranty claim.
