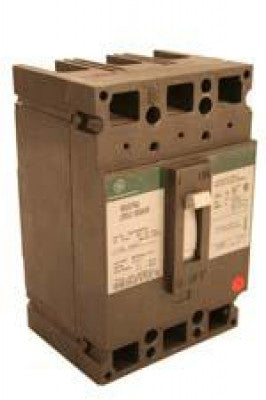

GE THED136030WL

GE THED136030WL

circuit breakers

  • Catalog Number: THED136030WL
  • Manufacturer: GE
  • Connection: Bolt-on
  • Frame Type: THED
  • Amperage: 30
  • Poles: 3
  • Voltage: 480

GE THED136030WL...

More Info
$179.95
$210.95
$179.95
  • Category: Buy Wholesale Circuit Breakers | Top Brands & Manufacturers, GE Circuit Breakers, New Circuit Breakers, Used Circuit Breakers
  • Catalog Number: THED136030WL
  • Manufacturer: GE
  • Connection: Bolt-on
  • Frame Type: THED
  • Amperage: 30
  • Poles: 3
  • Voltage: 480

GE THED136030WL Specifications:


  • MOLDED CASE SWITCH, THERMAL MAGNETIC
  • THED FRAME
  • 600 VAC
  • 30 AMPERE
  • 3 POLE
  • INTERRUPTING RATING 200 KILOAMPERE AT 240 VAC, 100 KILOAMPERE AT 480 VAC, 65 KILOAMPERE AT 600 VAC
  • TERMINAL ALUMINUM/COPPER LINE LUG, LOAD LUG
  • APPROVAL UL



GE THED136030WL Details:


  • Commodity Description: 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers
  • Type: MOLDED CASE, FIXED THERMAL MAGNETIC
  • Current Rating: 30 AMPERE
  • Interrupting Rating: 65 KILOAMPERE AT 240 VAC, 25 KILOAMPERE AT 480 VAC, 18 KILOAMPERE AT 600 VAC, 10 KILOAMPERE AT 500 VDC
  • Terminal Type: ALUMINUM/COPPER LINE LUG, LOAD LUG
  • Lugkit: TCAL12 = #14 - #3TCAL14 = #14 - #8
  • Mounting Hardware: AMC6EBFP = Bolt-in Spectra Board - Twin mountTED1DPK = CCB Board - Twin Mount
In addition to a detailed inspection, every Circuit Breaker Wholesale product comes with a comprehensive warranty covering defects for 1 year. Reconditioned products come with a comprehensive warranty covering defects for 3 years. Circuit Breaker Wholesale will repair, replace or service all covered components, that are found to be defective in factory-supplied products during the applicable warranty periods. All warranty items must be returned to Circuit Breaker Wholesale for a full inspection and must be returned within the warranty period. Contact us at support@circuitbreakerwholesale.com or call us at (800) 800-800 for help with your warranty claim.
