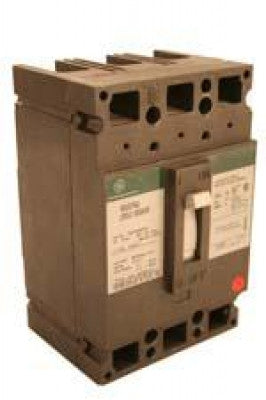

GE THED136150

GE THED136150

circuit breakers

  • Catalog Number: THED136150
  • Manufacturer: GE
  • Connection: Bolt-on
  • Frame Type: THED
  • Amperage: 150
  • Poles: 3
  • Voltage: 480

GE THED136150...

More Info
$429.95
$529.95
$429.95
  • Category: Buy Wholesale Circuit Breakers | Top Brands & Manufacturers, GE Circuit Breakers, New Circuit Breakers, Used Circuit Breakers
  • Catalog Number: THED136150
  • Manufacturer: GE
  • Connection: Bolt-on
  • Frame Type: THED
  • Amperage: 150
  • Poles: 3
  • Voltage: 480

GE THED136150 Specifications:


  • MOLDED CASE, THERMAL MAGNETIC
  • E FRAME
  • 600 VAC
  • 150 AMPERE
  • 3 POLE
  • INTERRUPTING RATING 42 KILOAMPERE AT 240 VAC, 25 KILOAMPERE AT 480 VAC, 18 KILOAMPERE AT 600 VAC, 10 KILOAMPERE AT 250 VDC (UL)
  • TERMINAL ALUMINUM/COPPER LINE LUG, LOAD LUG



GE THED136150 Details:


  • Commodity Description: 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers
  • Type: MOLDED CASE, FIXED THERMAL MAGNETIC
  • Current Rating: 150 AMPERE
  • Interrupting Rating: 65 KILOAMPERE AT 240 VAC, 25 KILOAMPERE AT 480 VAC, 18 KILOAMPERE AT 600 VAC, 10 KILOAMPERE AT 500 VDC
  • Terminal Type: ALUMINUM/COPPER LOAD LUG
