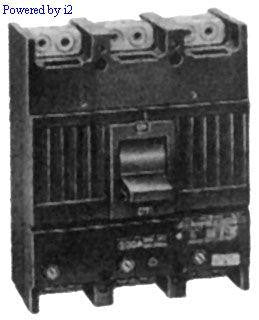

GE TJD432300

GE TJD432300

circuit breakers

  • Catalog Number: TJD432300
  • Manufacturer: GE
  • Connection: Bolt-on
  • Frame Type: TJD
  • Amperage: 250
  • Poles: 3
  • Voltage: 120/240

GE TJD432300...

More Info
$417.00
$799.95
$417.00
  • Category: Buy Wholesale Circuit Breakers | Top Brands & Manufacturers, GE Circuit Breakers, New Circuit Breakers, Used Circuit Breakers
  • Catalog Number: TJD432300
  • Manufacturer: GE
  • Connection: Bolt-on
  • Frame Type: TJD
  • Amperage: 250
  • Poles: 3
  • Voltage: 120/240

GE TJD432300 Specifications:


  • MOLDED CASE, THERMAL MAGNETIC
  • 240 VAC
  • 300 AMPERE
  • 3 POLE
  • INTERRUPTING RATING 22 KILOAMPERE AT 240 VAC (UL)
  • TERMINAL LOAD LUG
  • SIZE 8-1/4 INCH W X 3-13/16 INCH D X 10-1/8 INCH H
  • APPROVAL UL
  • TJD MODEL



GE TJD432300 Details:


  • Commodity Description: 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers
  • Type: MOLDED CASE, COMMON TRIP, FIXED THERMAL MAGNETIC
  • Current Rating: 300 AMPERE
  • Interrupting Rating: 22 KILOAMPERE
  • Terminal Type: ALUMINUM/COPPER LOAD LUG
