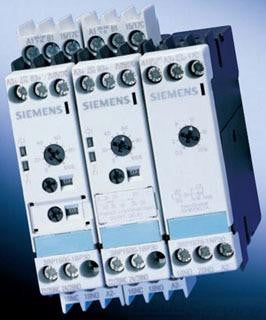

Siemens 3RP1505-1BP30

Siemens 3RP1505-1BP30

motor control

  • Catalog Number: 3RP1505-1BP30
  • Manufacturer: Siemens

Siemens 3RP1505-1BP30 Specifications:


  • AC/DC OPERATED, SOLID STATE, STAR DELTA
  • CONTACT CONFIGURATION DPDT
  • CONTACT VOLTAGE 230...
More Info
  • Category: Motor Controls, New Motor Controls, Siemens Motor Control, Used Motor Controls
  • Catalog Number: 3RP1505-1BP30
  • Manufacturer: Siemens

Siemens 3RP1505-1BP30 Specifications:


  • AC/DC OPERATED, SOLID STATE, STAR DELTA
  • CONTACT CONFIGURATION DPDT
  • CONTACT VOLTAGE 230 VAC AT 50 HZ
  • CONTACT CURRENT 3 AMPERE
  • COIL VOLTAGE 24/200 TO 240 VAC AT 50/60 HZ, 24 VDC



Siemens 3RP1505-1BP30 Details:


  • Directory:: CIS
  • Commerce Sector:: Construction Materials
  • Industry:: Electrical
  • Commodity Code:: 4210
  • Commodity Description:: Relays, etc. - Relays & Accessories
  • Noun:: Relay
  • UPC:: 75455441550
  • Item Number:: 41550
  • Catalog Number:: 3RP1505-1BP30
  • :
  • UNSPSC:: 39121519
  • Image Location:: Relay Image
  • Model:: 3RP1505
  • Type:: AC/DC OPERATED, SOLID STATE, STAR DELTA
  • Contact Configuration:: DPDT
  • Contact Voltage Rating:: 230 VAC AT 50 HZ
  • Contact Current Rating:: 3 AMPERE
  • Coil Voltage:: 24/200 TO 240 VAC AT 50/60 HZ, 24 VDC
  • Timing Range:: 0.05 TO 1/0.5 TO 3/0.5 TO 10/1.5 TO 30/5 TO 100 SEC OR 0.5 TO 1/0.15 TO 3/0.5 TO 10/1.5 TO 30/5 TO 100 MIN OR 0.05 TO 1/0.15 TO 3/0.5 TO 10/1.5 TO 30/1 TO 100 HR
  • Timing Mode:: ON DELAY/OFF DELAY/FLASHING/INTERVAL
  • Timing Adjustment Operator Type:: DIAL
  • Terminal Type:: SCREW
  • Mounting:: PANEL
  • Additional Information:: APPLICABLE STANDARD IEC 721-3-3, 1812-1, 1000, 947-5-1, VDE 0435
  • ::
