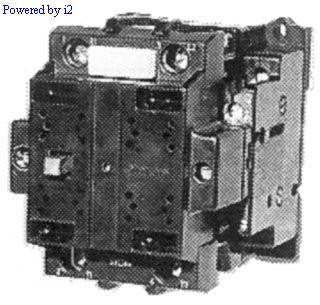

Siemens 3TC4417-0BP1

Siemens 3TC4417-0BP1

motor control

  • Catalog Number: 3TC4417-0BP1
  • Manufacturer: Siemens

Siemens 3TC4417-0BP1 Specifications:


  • 3 HP AT 115 VDC, 5 HP AT 230/750 VDC, 10 HP AT 500/575...
More Info
  • Category: Motor Controls, New Motor Controls, Siemens Motor Control, Used Motor Controls
  • Catalog Number: 3TC4417-0BP1
  • Manufacturer: Siemens

Siemens 3TC4417-0BP1 Specifications:


  • 3 HP AT 115 VDC, 5 HP AT 230/750 VDC, 10 HP AT 500/575 VDC
  • 32 AMPERE (OPEN), 29 AMPERE (ENCLOSED)
  • COIL VOLTAGE 240 VAC AT 50/60 HZ
  • AUXILIARY CONTACT 2NO-2NC
  • VERTICAL MOUNTING
  • OPEN
  • SIZE NEMA 1
  • APPROVAL UL, CSA
  • 3TC MODEL



Siemens 3TC4417-0BP1 Details:


  • Directory:: CIS
  • Commerce Sector:: Construction Materials
  • Industry:: Electrical
  • Commodity Code:: 4130
  • Commodity Description:: Motor Cntrl Starters, etc. - Motor Cntrl Starters & Cntctrs
  • UPC:: 75455473587
  • Item Number:: 73587
  • Catalog Number:: 3TC4417-0BP1
  • UNSPSC:: 39121529
  • Model:: 3TC
  • Power Rating/Voltage:: 3 HP AT 115 VDC, 5 HP AT 230/750 VDC, 10 HP AT 500/575 VDC
  • Current Rating:: 32 AMPERE (OPEN), 29 AMPERE (ENCLOSED)
  • Coil Voltage:: 240 VAC AT 50/60 HZ
  • Auxiliary Contact:: 2NO-2NC
  • Mounting:: VERTICAL
  • Enclosure:: OPEN
  • Size:: NEMA 1
  • Approval:: UL, CSA
  • Additional Information:: APPLICABLE STANDARD IEC, NEMA, VDE
