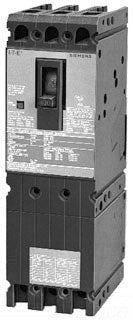

Siemens / ITE CED63B080

Siemens / ITE CED63B080

circuit breakers

  • Manufacturer: Siemens / ITE
  • Current Condition:
  • Type: CED
  • Amperage: 80
  • Poles: 3
  • Voltage: 600

Siemens / ITE CED63B080 Specifications:


  • FUSELESS CURRENT LIMITING
  • ...
More Info
$690.00
$726.00
$690.00
  • Category: ITE Circuit Breakers, New ITE Circuit Breakers, Used ITE Circuit Breakers
  • Manufacturer: Siemens / ITE
  • Current Condition:
  • Type: CED
  • Amperage: 80
  • Poles: 3
  • Voltage: 600

Siemens / ITE CED63B080 Specifications:


  • FUSELESS CURRENT LIMITING
  • THERMAL MAGNETIC
  • 3 POLE
  • 600 VAC
  • 500 VDC
  • 80 AMPERE AT 40 DEG C
  • INTERRUPTING RATING 200 KILOAMPERE AT 240/480 VAC
  • 100 KILOAMPERE AT 600 VAC
  • 50 KILOAMPERE AT 500 VDC (UL)
  • LUG LOAD TERMINAL TERMINAL
  • WIRE SIZE 4 TO 1/0 AWG (ALUMINUM/COPPER)
  • SIZE 3 INCH W X 4.56 INCH D X 9.58 INCH H
  • APPROVAL UL 489
  • CSA 22.2
  • SENTRON[R] BRAND
  • CED6 MODEL
  • RED LABEL Molded Case Circuit Breakers from Siemens / ITE



Siemens / ITE CED63B080 Details:


  • BREAKER ED 3P 80A 600V 100KA LD LUG (More Details)
