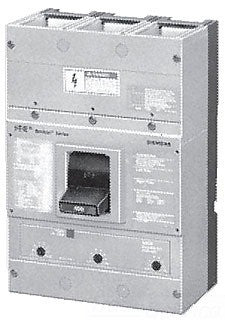

Siemens / ITE LXD63S600AL

Siemens / ITE LXD63S600AL

circuit breakers

  • Manufacturer: Siemens / ITE
  • Current Condition:
  • Type: LXD
  • Amperage: 600
  • Poles: 3
  • Voltage: 600

Siemens / ITE LXD63S600AL Specifications:


  • MOLDED CASE
  • THERMAL...
More Info
$1,151.00
$1,151.00
  • Category: ITE Circuit Breakers, New ITE Circuit Breakers, Used ITE Circuit Breakers
  • Manufacturer: Siemens / ITE
  • Current Condition:
  • Type: LXD
  • Amperage: 600
  • Poles: 3
  • Voltage: 600

Siemens / ITE LXD63S600AL Specifications:


  • MOLDED CASE
  • THERMAL MAGNETIC
  • LD FRAME
  • 600 VAC AT 50/60 HZ
  • 500 VDC
  • 600 AMPERE
  • 3 POLE
  • INTERRUPTING RATING 65 KILOAMPERE AT 240 VAC
  • 35 KILOAMPERE AT 480 VAC
  • 25 KILOAMPERE AT 600 VAC/500 VDC (UL)
  • 65 KILOAMPERE AT 220/240 VAC
  • 40 KILOAMPERE AT 380/415 VAC
  • 30 KILOAMPERE AT 500 VAC (IEC)
  • TERMINAL LINE LUG
  • LOAD LUG
  • SIZE 7.5 INCH W X 4 INCH D X 11 INCH H
  • LXD6 MODEL
  • ICS RATING 33 KILOAMPERE AT 220/240 VAC
  • 20 KILOAMPERE AT 380/415 VAC
  • 15 KILOAMPERE AT 500 VAC (IEC)
  • USED WITH SWITCH TO SHOW AUTOMATIC SELF PROTECTION Molded Case Circuit Breakers from Siemens / ITE



Siemens / ITE LXD63S600AL Details:


  • BREAKER LD 3P 600A 600V 25KA FX SW LUGS (More Details)
In addition to a detailed inspection, every Circuit Breaker Wholesale product comes with a comprehensive warranty covering defects for 1 year. Reconditioned products come with a comprehensive warranty covering defects for 3 years. Circuit Breaker Wholesale will repair, replace or service all covered components, that are found to be defective in factory-supplied products during the applicable warranty periods. All warranty items must be returned to Circuit Breaker Wholesale for a full inspection and must be returned within the warranty period. Contact us at support@circuitbreakerwholesale.com or call us at (800) 800-800 for help with your warranty claim.
