- EHB34100 Square D; Circuit Breakers; 100A; 3P; 480 VAC; Bolt-On EHB34100 Square D; Circuit Breakers; 100A; 3P; 480 VAC; Bolt-On
% $-1,520.00
Square D

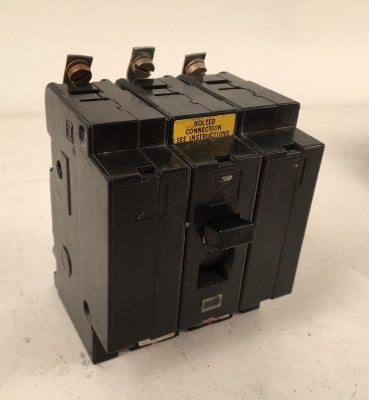

EHB34100 Square D; Circuit Breakers; 100A; 3P; 480 VAC; Bolt-On
Product SKU: square-d-ehb34100
Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
$1,520.00
EHB34100 Square D; Circuit Breakers; 100A; 3P; 480 VAC; Bolt-On
To receive a quote for square-d-ehb34100, please complete the form below. You can also talk to our expert sales team right now by calling 800-211-4962
Thank you for contacting us. Your inquiry for square-d-ehb34100 was received and we will be in touch shortly. You can also call 800-211-4962 to speak to someone on our expert sales team.
Want it delivered by
- Description
- Shipping & Returns
- Reviews
- Catalog Number: EHB34100
- Manufacturer: Square D
- Connection: Bolt-on
- Frame Type: EHB
- Amperage: 100
- Poles: 3
- Voltage: 480
Square D EHB34100 Specifications:
- MOLDED CASE, THERMAL MAGNETIC
- E FRAME
- 480 STAR/277 VAC AT 50/60 HZ, 240 VAC AT 50/60 HZ
- 100 AMPERE
- 3 POLE
- INTERRUPTING RATING 65 KILOAMPERE AT 240 VAC, 14 KILOAMPERE AT 480 STAR/277 VAC (UL/CSA)
- SIZE 3 INCH W X 2.97 INCH D X 4 INCH H
- EHB MODEL
Square D EHB34100 Details:
- Commodity Description: Circuit Breakers - Industrial Circuit Breakers
- Type: MOLDED CASE, THERMAL MAGNETIC
- Current Rating: 100 AMPERE
- Interrupting Rating: 65 KILOAMPERE AT 240 VAC, 14 KILOAMPERE AT 480 STAR/277 VAC (UL/CSA)
- Lugkit: 3 standard wire connections on load side
- Mounting Hardware: Most Panels include all required connections.
In addition to a detailed inspection, every Circuit Breaker Wholesale product comes with a comprehensive warranty covering defects for 1 year. Reconditioned products come with a comprehensive warranty covering defects for 3 years. Circuit Breaker Wholesale will repair, replace or service all covered components, that are found to be defective in factory-supplied products during the applicable warranty periods. All warranty items must be returned to Circuit Breaker Wholesale for a full inspection and must be returned within the warranty period. Contact us at support@circuitbreakerwholesale.com or call us at (800) 800-800 for help with your warranty claim.
