- LC36400 Square D, Circuit Breakers, 400A; 3P; 600 VAC; I-Line LC36400 Square D, Circuit Breakers, 400A; 3P; 600 VAC; I-Line
% $0.00
Square D

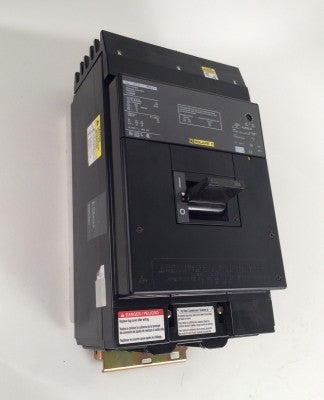

LC36400 Square D, Circuit Breakers, 400A; 3P; 600 VAC; I-Line
Product SKU: square-d-lc36400
Available:
Only 1 item in stock
1 item in stock
In stock
Out of stock
Back in stock
$0.00
LC36400 Square D, Circuit Breakers, 400A; 3P; 600 VAC; I-Line
To receive a quote for square-d-lc36400, please complete the form below. You can also talk to our expert sales team right now by calling 800-211-4962
Thank you for contacting us. Your inquiry for square-d-lc36400 was received and we will be in touch shortly. You can also call 800-211-4962 to speak to someone on our expert sales team.
Want it delivered by
- Description
- Shipping & Returns
- Reviews
- Catalog Number: LC36400
- Manufacturer: Square D
- Connection: Plug-in
- Frame Type: LC
- Amperage: 400
- Poles: 3
- Voltage: 600
Square D LC36400 Specifications:
- MOLDED CASE, THERMAL MAGNETIC
- L FRAME
- 240 VAC AT 50/60 HZ, 480 VAC STAR/277 VAC AT 50/60 HZ, 480 VAC AT 50/60 HZ, 600 VAC STAR/347 VAC AT 50/60 HZ, 600 VAC AT 50/60 HZ (UL/CSA/NOM)
- 240/415 VAC AT 50/60 HZ (IEC)
- 400 AMPERE AT 40 DEG C
- 3 POLE
Square D LC36400 Details:
- Commodity Description: Circuit Breakers - Industrial Circuit Breakers
- Type: MOLDED CASE, THERMAL MAGNETIC
- Current Rating: 400 AMPERE AT 40 DEG C
- Interrupting Rating: 100 KILOAMPERE AT 240 VAC, 65 KILOAMPERE AT 480 VAC STAR/277 VAC OR 480 VAC, 35 KILOAMPERE AT 600 VAC STAR/347 VAC OR 600 VAC (UL/CSA/NOM)
- Lugkit: AL400LA = 1-#1 AWG-600 kcmilAL600LI5 = 2-#4/0 - 500kcmil
- Mounting Hardware: Most panels include all required hardware
In addition to a detailed inspection, every Circuit Breaker Wholesale product comes with a comprehensive warranty covering defects for 1 year. Reconditioned products come with a comprehensive warranty covering defects for 3 years. Circuit Breaker Wholesale will repair, replace or service all covered components, that are found to be defective in factory-supplied products during the applicable warranty periods. All warranty items must be returned to Circuit Breaker Wholesale for a full inspection and must be returned within the warranty period. Contact us at support@circuitbreakerwholesale.com or call us at (800) 800-800 for help with your warranty claim.
