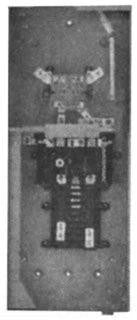

Square D QC816F200CH

Square D QC816F200CH

motor control

  • Catalog Number: QC816F200CH
  • Manufacturer: Square D

Square D QC816F200CH Specifications:


  • RINGLESS
  • 2 POLE 22 KILOAMPERE INTERRUPTING RATING CIRCUIT BREAKER MAIN DISCONNECT
  • ...
More Info
  • Category: Motor Controls, New Motor Controls, Square D Motor Control, Used Motor Controls
  • Catalog Number: QC816F200CH
  • Manufacturer: Square D

Square D QC816F200CH Specifications:


  • RINGLESS
  • 2 POLE 22 KILOAMPERE INTERRUPTING RATING CIRCUIT BREAKER MAIN DISCONNECT
  • SERVICE TYPE OVERHEAD/UNDERGROUND
  • 120/240 VAC
  • 200 AMPERE
  • HORN BYPASS SWITCH
  • 5 JAW(S)
  • 16 CIRCUIT(S)
  • 8 POLE SPACE(S)
  • (2) 2 1/2 INCH HUB



Square D QC816F200CH Details:


  • Directory:: CIS
  • Commerce Sector:: Construction Materials
  • Industry:: Electrical
  • Commodity Code:: 3500
  • Commodity Description:: Distribution Equipt - Meter Sockets & Mounting Assemblies
  • Noun:: Meter Center
  • UPC:: 78590100108
  • Item Number:: 00108
  • Catalog Number:: QC816F200CH
  • UNSPSC:: 39121102
  • Brand Name:: QO[R]
  • Type:: RINGLESS
  • Main Disconnect Type:: 2 POLE 22 KILOAMPERE INTERRUPTING RATING CIRCUIT BREAKER
  • Service Type:: OVERHEAD/UNDERGROUND
  • Circuit Configuration:: 1 PHASE 3 WIRE
  • Voltage Rating:: 120/240 VAC
  • Current Rating:: 200 AMPERE
  • Bypass Switch Type:: HORN
  • Number of Jaws:: 5
  • Number of Circuits:: 16
  • Number of Pole Spaces:: 8
  • Hub Type:: (2) 2 1/2 INCH
  • Knockouts:: (3) (1/2-INCH-3/4 INCH) CONCENTRIC KNOCKOUT, (1) (1/2-INCH-3/4 INCH-1 INCH) CONCENTRIC KNOCKOUT, (1) (1 INCH-1 1/4 INCH-1-1/2 INCH-2 INCH) CONCENTRIC KNOCKOUT, (3) (1 1/4 INCH-1-1/2 INCH-2 INCH-2-1/2 INCH) CONCENTRIC KNOCKOUT
  • Enclosure:: NEMA 1/3R
  • Mounting:: SURFACE
  • Wire Size:: 6 AWG TO 350 KCMIL (ALUMINUM/COPPER, LINE), 4 AWG TO 250 KCMIL (ALUMINUM/COPPER, LOAD), 12 TO 2/0 AWG (ALUMINUM/COPPER, GROUND)
  • Size:: 14.37 INCH W X 4.75 INCH D X 35.44 INCH H
  • Approval:: UL
  • Additional Information:: CIRCUIT BREAKER NOT INCLUDED
